ECORICH R
Case studies of energy-saving NC milling machine
3. Case studies of energy-saving - NC milling machine
| Machine | NC milling machine |
|---|---|
| Model | EHU30R-M0702 |
| Pressure | 5.5MPa |
| Tank capacity | 20L |

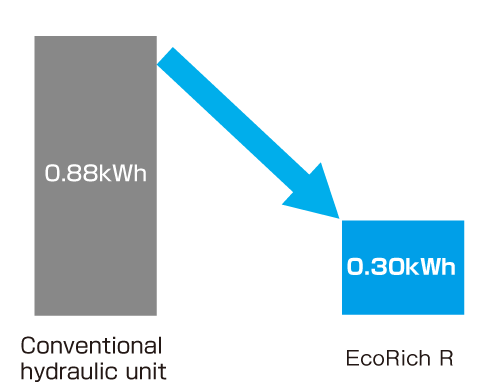

 Power consumption reduction by energysaving effect
65.9％  |
|
Power consumption of conventional hydraulic unit

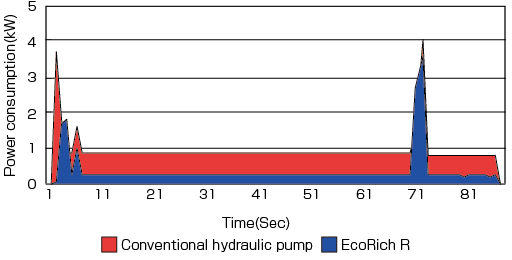

Comparison of power consumption
Power consumpion
(Averge When operating)
about 65.9% reduced
Furter Operating noise (at standby[retaining pressure])
4db(A) DOWN（noise cut）
Conventional hydraulic pump : 75dB → ECORICH R :71dB
Measurement distans : Proximity at 10cm (for refereane)
| Model | Pressure | Tank capacity | ||
|---|---|---|---|---|
| Before | Conventional hydraulic pump | Piston pump | 5.5MPa | 20L |
| After | ECORICH R | EHU30R-M0702 | 5.5MPa | 20L |
| Power consumption reduction by energy-saving effect
65.9％ |
||||
