ECORICH R
Case studies of energy-saving Screw grinding machine
4. Case studies of energy-saving - Screw grinding machine
| Machine | Ecorich R |
|---|---|
| Model | EHU15R-M0701 |
| Pressure | 5.0MPa |
| Tank capacity | 18 → 10L |

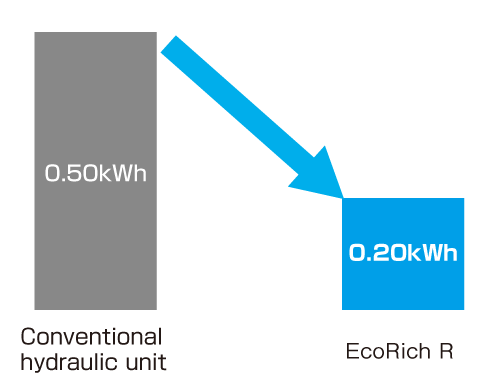

 Power consumption reduction by energysaving effect
60.0％  |
|
Power consumption of conventional hydraulic unit

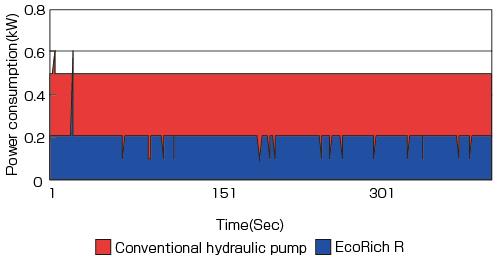

Comparison of power consumption
Power consumpion
(Averge When operating)
about 60.0% reduced
Furter Tank oil temperature 6.1℃ DOWN
Conventional hydraulic pump : 30.2℃
ECORICH R : 24.1℃
And tank oil volume reduced by 8L
| Model | Pressure | Tank capacity | ||
|---|---|---|---|---|
| Before | Conventional hydraulic pump | Piston pump | 5.0MPa | 18L |
| After | ECORICH R | EHU15R-M0701 | 5.0MPa | 10L |
| Power consumption reduction by energy-saving effect
60.0％ |
||||
