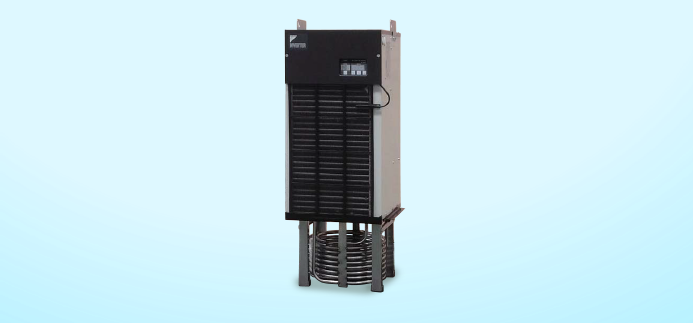

AKJ9 Specifications

_{Oil cooling unit} AKJ9 Specifications

Specifications of AKJ9 series are explained.

Specifications

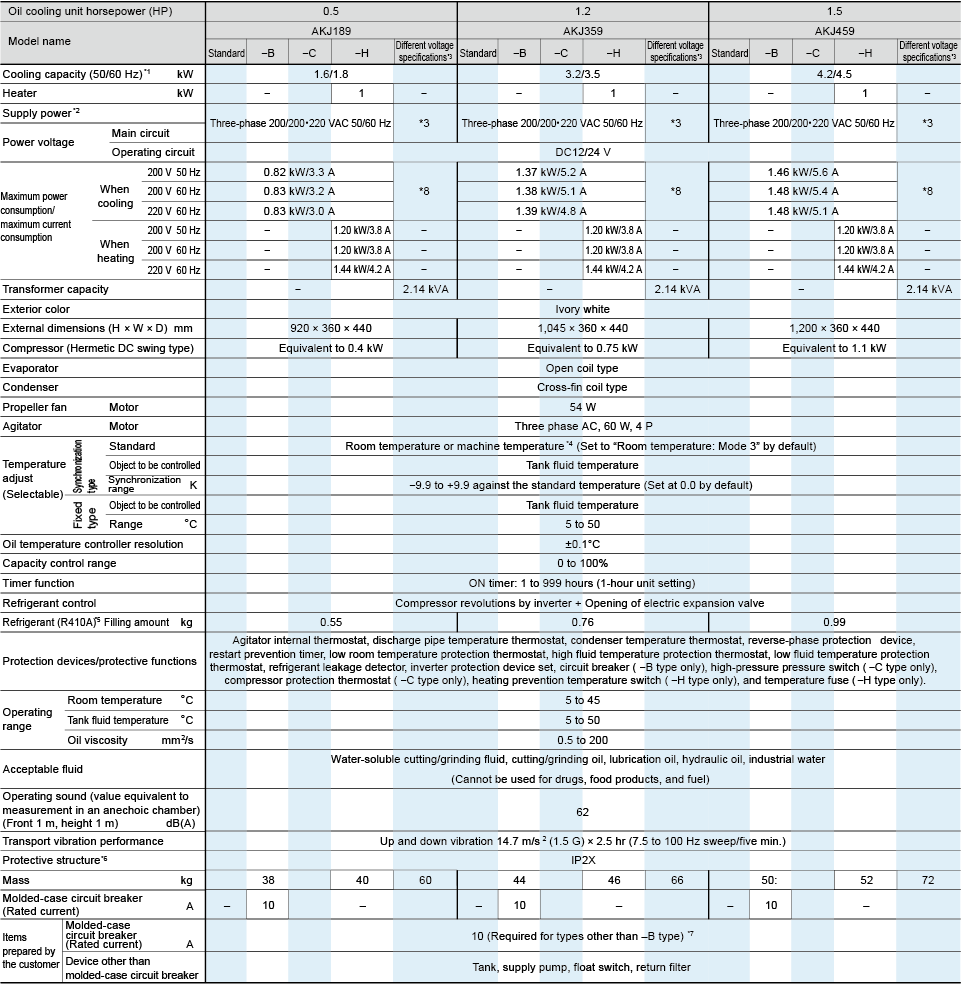

AKJ189, AKJ359, AKJ459

*1.: The cooling capacity indicates the value at the standard point (tank fluid temperature: 35°C, room temperature: 35°C, fluid used: ISO VG32). This unit has about ±5% of product tolerance.
*2.: Use a commercial power supply for the power source. The use of an inverter power supply may cause burn damage to the machine. The voltage fluctuation range should be within ±10%. If the voltage fluctuation range is more than ±10%, please consult us.
*3.: There are the following three types of different voltage specifications.
AC220, 230 V : Option code −046 (without transformer)
AC380, 400, 415 V : Option code −047 (with built-in transformer)
AC440, 460, 480 V : Option code −048 (with built-in transformer)
The main circuit voltage is the transformer’s secondary side voltage of AC 200 V, 50/60 Hz. (−046 units have no transformer and therefore have the same external dimensions and mass as standard units. Their main circuit voltage is 220/230 VAC, 50/60 Hz.)
*4.: The optional thermistor for machine temperature synchronization is required. (Refer to Page 17 for details.)
*5.: The SDS (Safety Data Sheet) of refrigerant R410A is attached to the -C type.
*6.: Electric component box ingress protection: IP54 or equivalent (However, use piping conduits etc. rated at least IP54 at wiring ports.)
*7.: The molded-case circuit breaker is not supplied with this product. Please prepare it yourself.

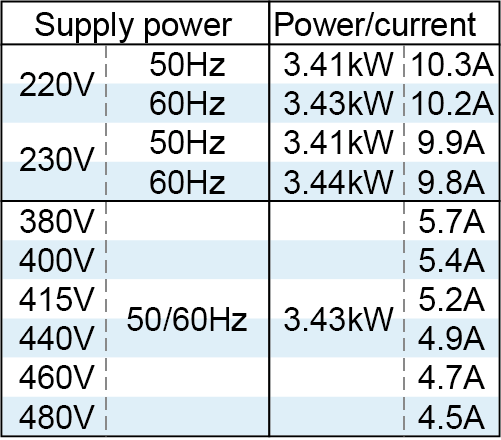

*8.: The maximum power consumption/maximum current consumption of different voltage specifications are shown in the tables below.

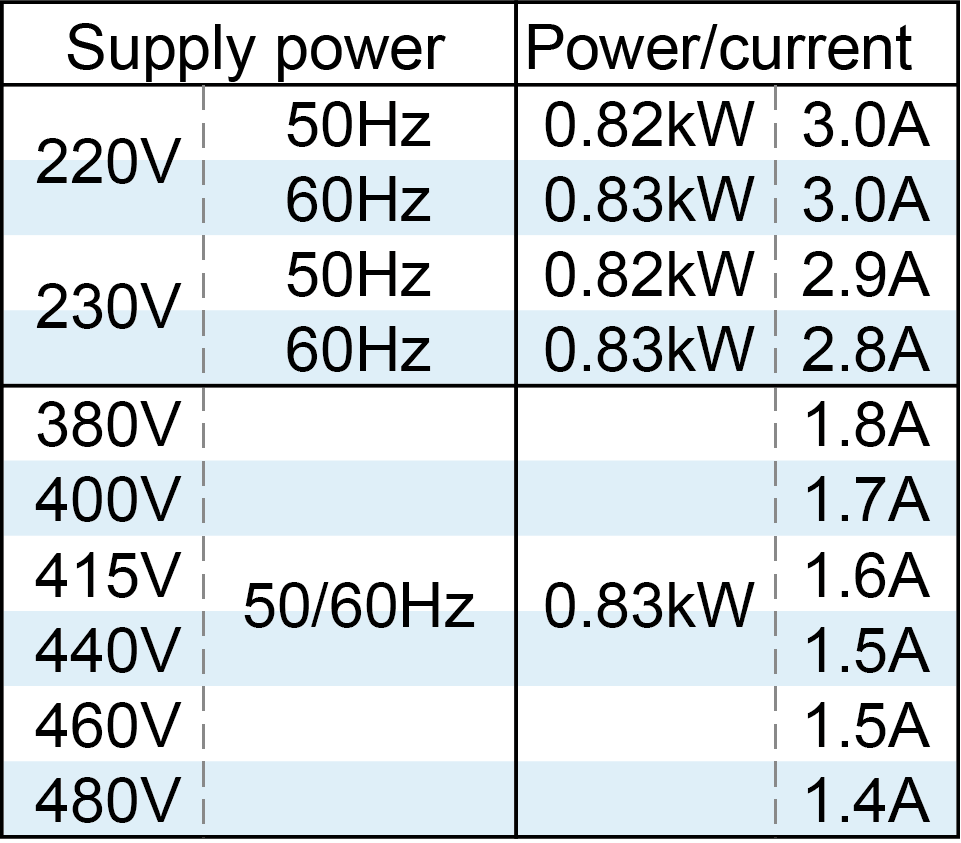

■AKJ189

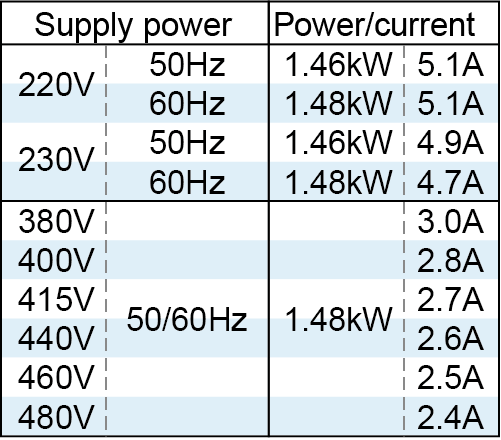

■AKJ359

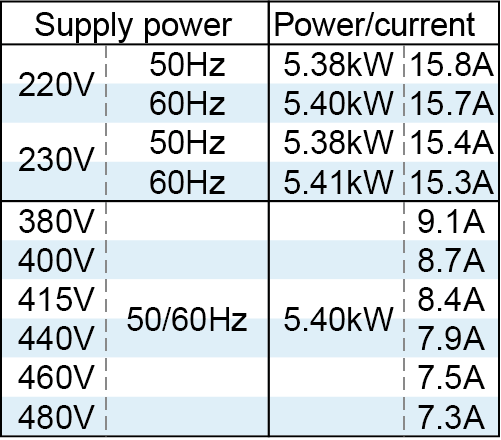

■AKJ459

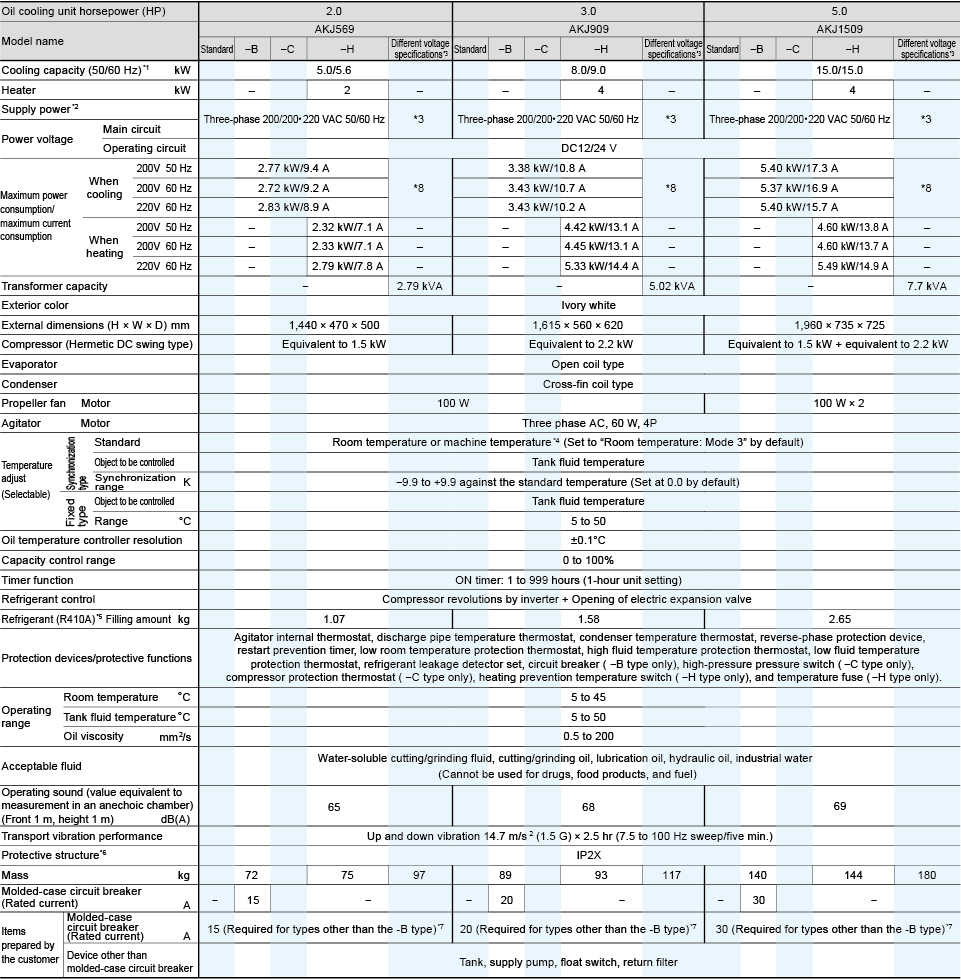

AKJ569, AKJ909, AKJ1509

*1.: The cooling capacity indicates the value at the standard point (tank fluid temperature: 35°C, room temperature: 35°C, fluid used: ISO VG32). This unit has about ±5% of product tolerance.
*2.: Use a commercial power supply for the power source. The use of an inverter power supply may cause burn damage to the machine. The voltage fluctuation range should be within ±10%. If the voltage fluctuation range is more than ±10%, please consult us.
*3.: There are the following three types of different voltage specifications.
AC220, 230 V : Option code −046 (without transformer)
AC380, 400, 415 V : Option code −047 (with built-in transformer)
AC440, 460, 480 V : Option code −048 (with built-in transformer)
The main circuit voltage is the transformer’s secondary side voltage of AC 200 V, 50/60 Hz. (−046 units have no transformer and therefore have the same external dimensions and mass as standard units. Their main circuit voltage is 220/230 VAC, 50/60 Hz.)
*4.: The optional thermistor for machine temperature synchronization is required. (Refer to Page 17 for details.)
*5.: The SDS (Safety Data Sheet) of refrigerant R410A is attached to the -C type.
*6.: Electric component box ingress protection: IP54 or equivalent (However, use piping conduits etc. rated at least IP54 at wiring ports.)
*7.: The molded-case circuit breaker is not supplied with this product. Please prepare it yourself.
*8.: The maximum power consumption/maximum current consumption of different voltage specifications are shown in the tables below.

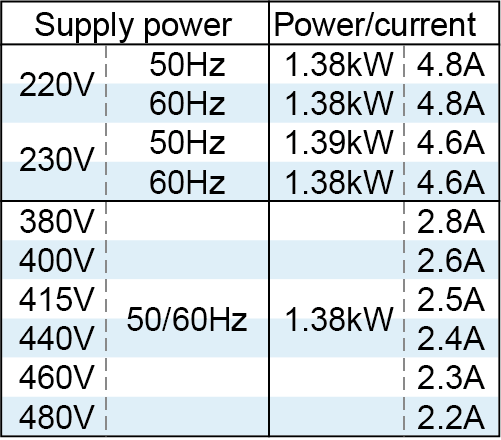

■AKJ569

■AKJ909

■AKJ1509

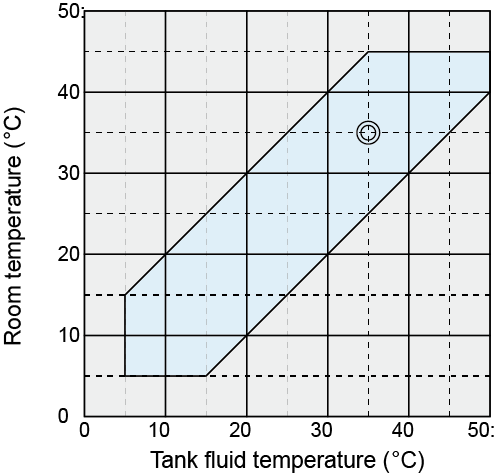

Operating range

1.: The mark ◎ shows the standard point.
2.: Be sure to use the unit within the range of use specified in 　
(Use outside this range may cause unit failure.)
