Case of company that manufactures machineries | |
---|---|
Machine | Exclusive machine |
Operating hour for one year | 4560Hrs |
Cost per kWh | 14cents/kWh |
Cost down by energy-saving effect for one year | 8664kWh |
![]() ![]() |
|
![]() ![]() |

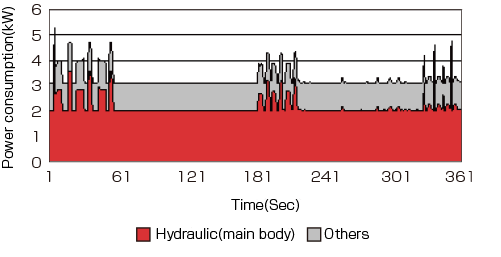

Power consumption of conventional hydraulic unit

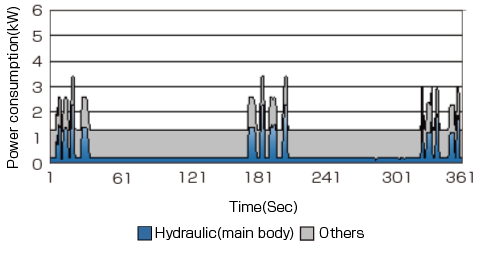

Power consumption of SUPER UNIT

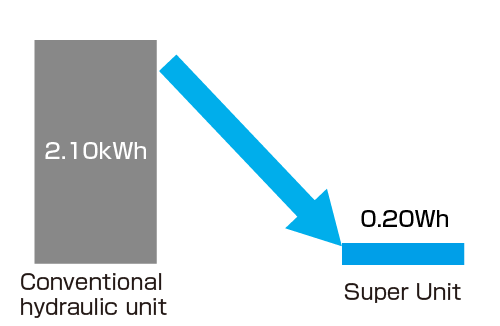

Comparison of power consumption
Power consumpion
(Averge When operating)
about 90% reduced
Model | Pressure | Motor capacity | Tank capacity | ||
---|---|---|---|---|---|
Before | Conventional hydraulic unit | Variable piston pump | 7.0MPa | 5.5kW | 140L |
After | SUPER UNIT | SUT10D6021 | 7.0MPa | Equivalent to 5.0kW | 100L |
![]() ![]() |
|||||
![]() ![]() |
