ECORICH R
Case studies of energy-saving Screw grinding machine

4. Case studies of energy-saving - Screw grinding machine

Machine Ecorich R
Model EHU15R-M0701
Pressure 5.0MPa
Tank capacity 18 → 10L
Power consumption reduction by energysaving effect 60.0% down

Power consumption of conventional hydraulic unit

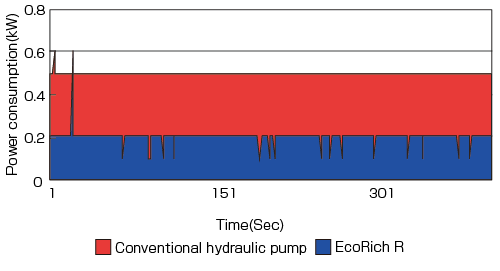

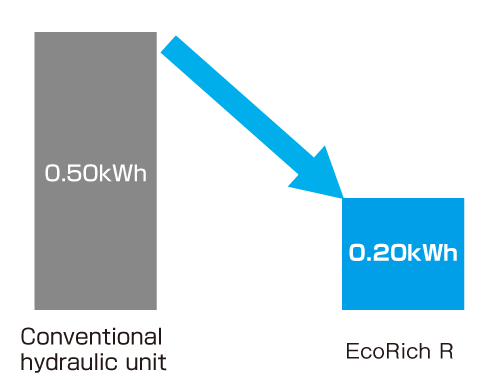

Comparison of power consumption

Power consumpion
(Averge When operating)
about 60.0% reduced

Furter Tank oil temperature 6.1℃ DOWN

Conventional hydraulic pump : 30.2℃
ECORICH R : 24.1℃
And tank oil volume reduced by 8L

Model Pressure Tank capacity
Before Conventional hydraulic pump Piston pump 5.0MPa 18L
After ECORICH R EHU15R-M0701 5.0MPa 10L
Power consumption reduction by energy-saving effect  60.0% down
