An innovative factory energy-savings proposal
Ever implemented an energy saving idea for the factory but not been satisfied with the results? Daikin has an innovative solution for those who are looking for more energy saving ideas.
Energy-saving technology of Daikin oil hydraulic equipment
Energy-saving technology of Daikin oil hydraulic equipment
DAIKIN's innovative IPM motors, which have been installed in over a million units in the air conditioning sector, are also applied to our hydraulic equipment.
Click here for more detailsFeatures Fusion of oil Hydraulics and motor/inverter technology
Significant energy savings have been achieved by reducing the motor speed when the pressure is maintained: more than 50% energy saving (compared with our conventional hydraulic systems).
Click here for more detailsFeatures Autonomous select type fixed tandem pump
Tandem pump of fixed displacement(high and low) is autonomously controlled according to load pressure.
Click here for more detailsCase studies of energy-saving
Press
Case of the company that manufactures electronic equipment parts
- Machine ：
- SUPER UNIT
- Operating hour for one year ：
- 8000Hrs
- Cost per kWh ：
- 14cents/kWh
- Cost down by energy-saving effect for one year ：
- $4,620-
Comparison of power consumption
Power consumpion
(Averge When operating)
about 72% reduced
Machining center
- Machine ：
- ECORICH R
- Model ：
- EHU30R-M0701
- Pressure ：
- 6.5MPa
- Oil temperature ：
- 57℃ → 30℃
Comparison of power consumption
Power consumpion
(Averge When operating)
about 66.6% reduced
Exclusive machine
Case of the company that manufactures automobile parts
- Machine ：
- SUPER UNIT
- Operating hour for one year ：
- 4560Hrs
- Cost per kWh ：
- 14cents/kWh
- Cost down by energy-saving effect for one year ：
- $1,210-
Comparison of power consumption
Power consumpion
(Averge When operating)
about 90% reduced
Others
Case of the company that manufactures machineries
- Machine ：
- SUPER UNIT
- Operating hour for one year ：
- 7200Hrs
- Cost per kWh ：
- 13cents/kWh
- Cost down by energy-saving effect for one year ：
- $1,080-

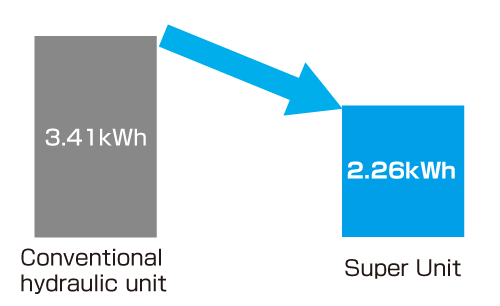

Comparison of power consumption
Power consumpion
(Averge When operating)
about 33.7% reduced
Hobbing machine
- Machine ：
- ECORICH R
- Model ：
- EHU30R-M0702
- Pressure ：
- 4.0MPa
- Tank capacity ：
- 60 → 20L

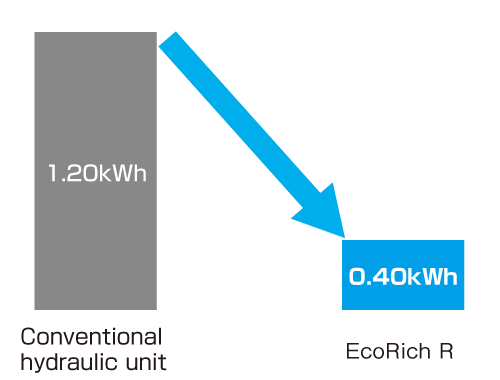

Comparison of power consumption
Power consumpion
(Averge When operating)
about 66.6% reduced
NC milling machine
- Machine ：
- ECORICH R
- Model ：
- EHU30R-M0702
- Pressure ：
- 5.5MPa
- Noise at pressure retained ：
- △4dB(A)

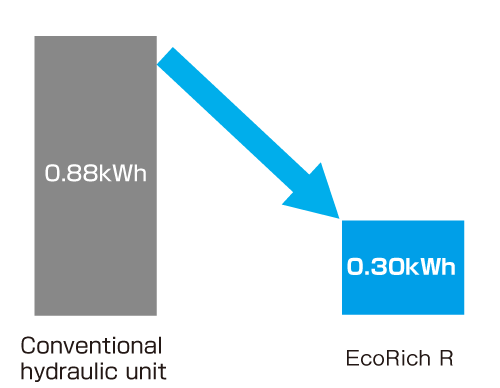

Comparison of power consumption
Power consumpion
(Averge When operating)
about 65.9% reduced
Screw grinding machine
- Machine ：
- ECORICH R
- Model ：
- EHU15R-M0701
- Pressure ：
- 5.0MPa
- Tank capacity ：
- 18 → 10L
Comparison of power consumption
Power consumpion
(Averge When operating)
about 60.0% reduced
