SUPER UNIT
Case studies of energy-saving(Press)
Case studies of energy-saving - Press
| Case of company that manufactures Electronic equipment parts | |
|---|---|
| Machine | Press |
| Operating hour for one year | 8000Hr |
| Cost per kWh | 14cents/kWh |
| Cost down by energy-saving effect for one year | 32960kWh |
 Cost down by energy-saving effect for one year
$4,620 |
|
 ※1 CO2gas reduction for one year
18.3t DOWN |
|
- ※1
- kWh×0.555(kg)：The low of global warming control artcle3.1 in Japan

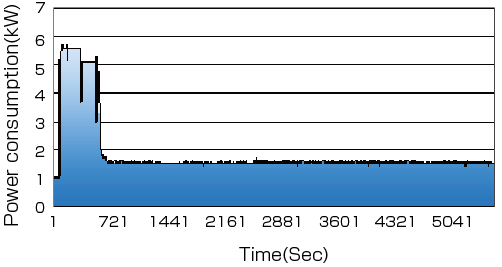

Power consumption of conventional hydraulic unit
Power consumption of SUPER UNIT

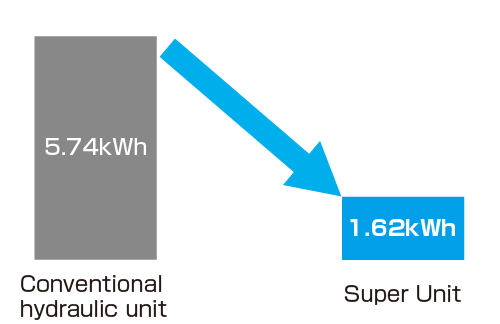

Comparison of power consumption
Power consumpion
(Averge When operating)
about 72% reduced
| Model | Pressure | Motor capacity | Tank capacity | ||
|---|---|---|---|---|---|
| Before | Conventional hydraulic unit | Tandem gear pump | 12.5MPa | 5.5kW | 200L |
| After | SUPER UNIT | SUT10D6021 | 12.5MPa | Equivalent to 5.0kW | 100L |
| ※1 Cost down by energy-saving effect for one year $4,620 |
|||||
| ※2 CO2gas reduction for one year 18.3t DOWN |
|||||
- ※1
- This is a case study of energy-saving case in Japan. We assume that operating time is 8000hours for one year and ¥15 per kWh($1=¥107)
- ※2
- kWh×0.555(kg)：The low of global warming control artcle 3.1 in Japan
