SUPER UNIT
Case studies of energy-saving
(Exclusive machine)
Case studies of energy-saving - Exclusive machine
| Case of company that manufactures machineries | |
|---|---|
| Machine | Exclusive machine |
| Operating hour for one year | 4560Hrs |
| Cost per kWh | 14cents/kWh |
| Cost down by energy-saving effect for one year | 8664kWh |
 Cost down by energy-saving effect for one year
$1,210-  |
|
 ※1 CO2gas reduction for one year
4.8t DOWN |
|
- ※1
- kWh×0.555(kg)：The low of global warming control artcle3.1 in Japan

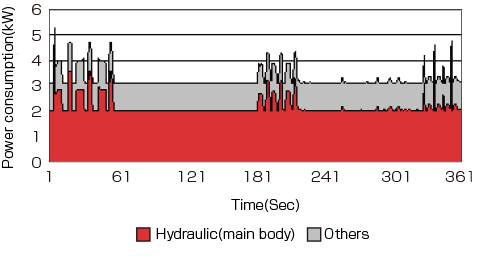

Power consumption of conventional hydraulic unit

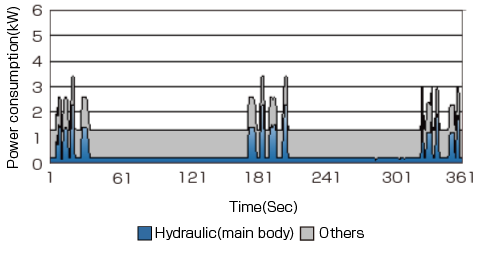

Power consumption of SUPER UNIT

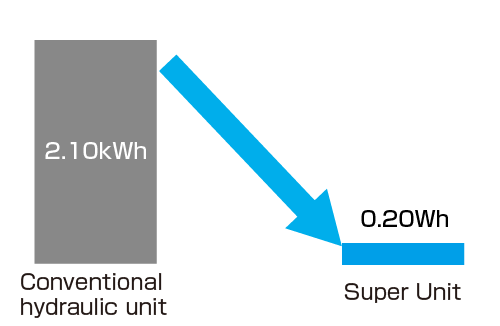

Comparison of power consumption
Power consumpion
(Averge When operating)
about 90% reduced
| Model | Pressure | Motor capacity | Tank capacity | ||
|---|---|---|---|---|---|
| Before | Conventional hydraulic unit | Variable piston pump | 7.0MPa | 5.5kW | 140L |
| After | SUPER UNIT | SUT10D6021 | 7.0MPa | Equivalent to 5.0kW | 100L |
| ※1 Cost down by energy-saving effect for one year
$1,210- |
|||||
| ※2 CO2gas reduction for one year
4.8t DOWN |
|||||
- ※1
- This is a case study of energy-saving case in Japan. We assume that operating time is 4560hours for one year and ¥15 per kWh($1=¥107)
- ※2
- kWh×0.555(kg)：The low of global warming control artcle 3.1 in Japan
