Oil cooling unit

Spectacularly improved energy-saving
inverter oil cooling unit, Daikin core inverter
control technology developed for
air conditioner adapted.

High-Accuracy temperature control and first class energy-saving are achieved by fusing “Hydraulic Technology” and “Inverter Technology”. Reduced delivery lead times are attained by listing all optional specifications as semi-standard.

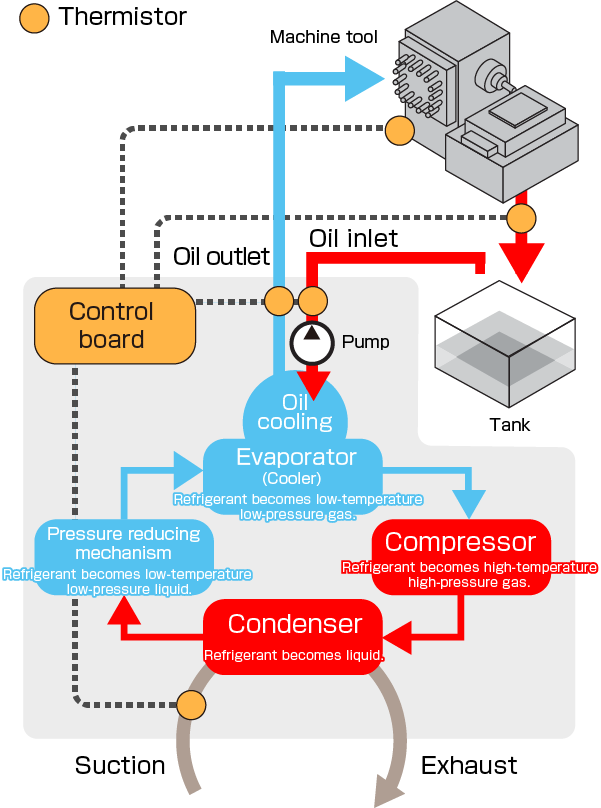

Principal of Oil Cooling Unit and Outline of the General system

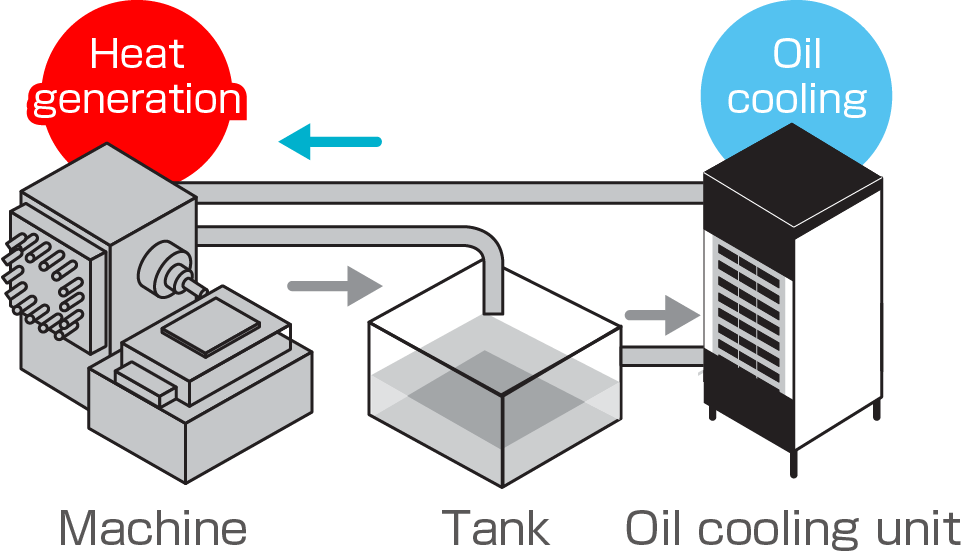

Why do machine tools require Oil Cooling Units?

Heat is generated by headstock bearing and gears of machine tools.

The entire main spindle heats up and the spindle deviates from the center of the column and head, which results in poor accuracy.

This is 40~70% of the reason that there are differences in temperature among machine parts.

Oil Cooling unit will control heat generation at the headstock, and the thermal deviation will be eliminated.

An Cooling unit lubricates the headstock gears and removes the heat generated. This function is helpful to improve machine accuracy.

Oil Cooling Unit is indispensable to improve machine accuracy.

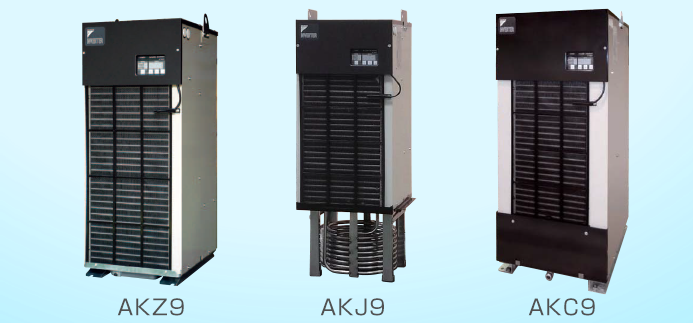

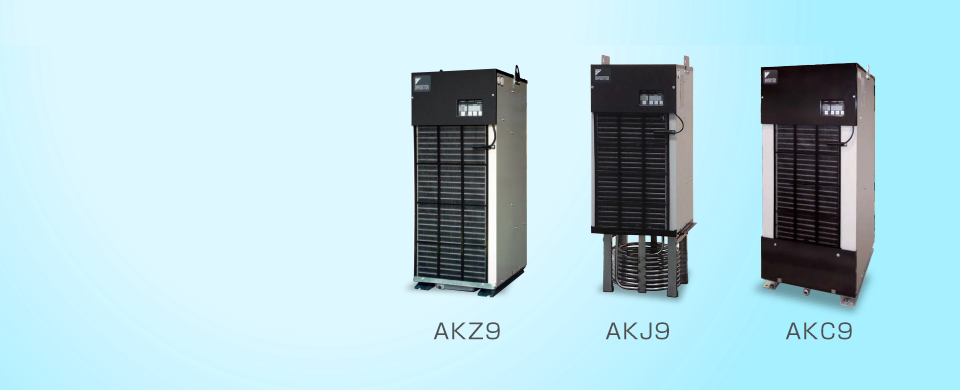

Oil cooling unit lineup

AKZ9 SERIES Circulation type

- High-Accuracy, Energy-saving, Compact
Environmentally Friendly Inverter Oil Cooling Unit

AKJ9 SERIES Immersion type

- Immersion-type oil cooling unit mounted directly on the coolant tank
- High-Accuracy model with the inverter-controlled compressor

AKC9 SERIES Circulation type

- Inline type cooling unit for coolant
- Highly accurate temperature control model by inverter control
