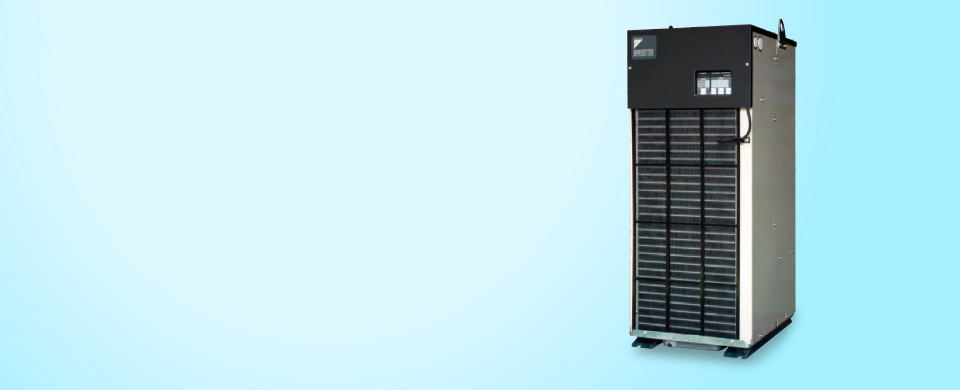

Oil cooling unit AKZ9 Applications

Application Examples of AKZ9 series are explained.

Application Examples

  • Machine tools: Machining center, NC lathe, Grinding machine, NC special-purpose machine, NC electric discharge machine, etc.
  • Industrial machinery: Molding machine, Press, etc.

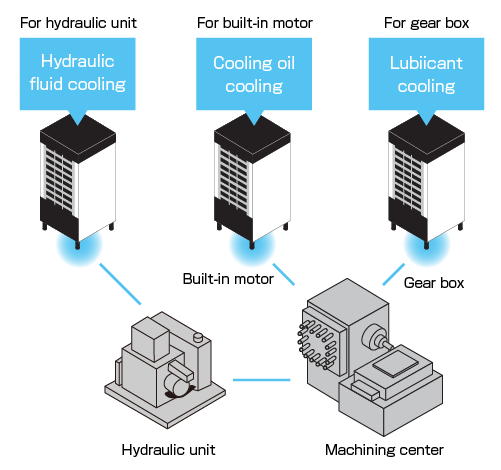

Application Examples of machining center

Cooling of hydraulic oil

Temperature(viscosity) control

  • Prevention of deterioration of hydraulic oil( Longer life)
  • Stabilized operation of actuator

Cooling of cooling oil

Cooling of periphery of built-in motor

  • Minimize the thermal displacement of spindle
  • Minimize the thermal displacement of column
  • Prevent temperature rise of motor coil

Cooling of lubricant

Cooling in gear box

  • Minimize the thermal displacement of spindle
  • Minimize the thermal displacement of column

Oil cooling unit lineup

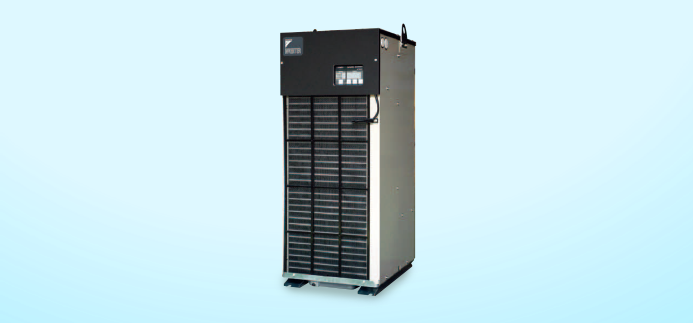

AKZ9 SERIES Circulation type

- High-Accuracy, Energy-saving, Compact
Environmentally Friendly Inverter Oil Cooling Unit

AKJ9 SERIES Immersion type

- Immersion-type oil cooling unit mounted directly on the coolant tank
- High-Accuracy model with the inverter-controlled compressor

AKC9 SERIES Circulation type

- Inline type cooling unit for coolant
- Highly accurate temperature control model by inverter control
