_{Oil cooling unit} AKZ9 Specifications

Specifications of AKZ9 series are explained.

Specifications

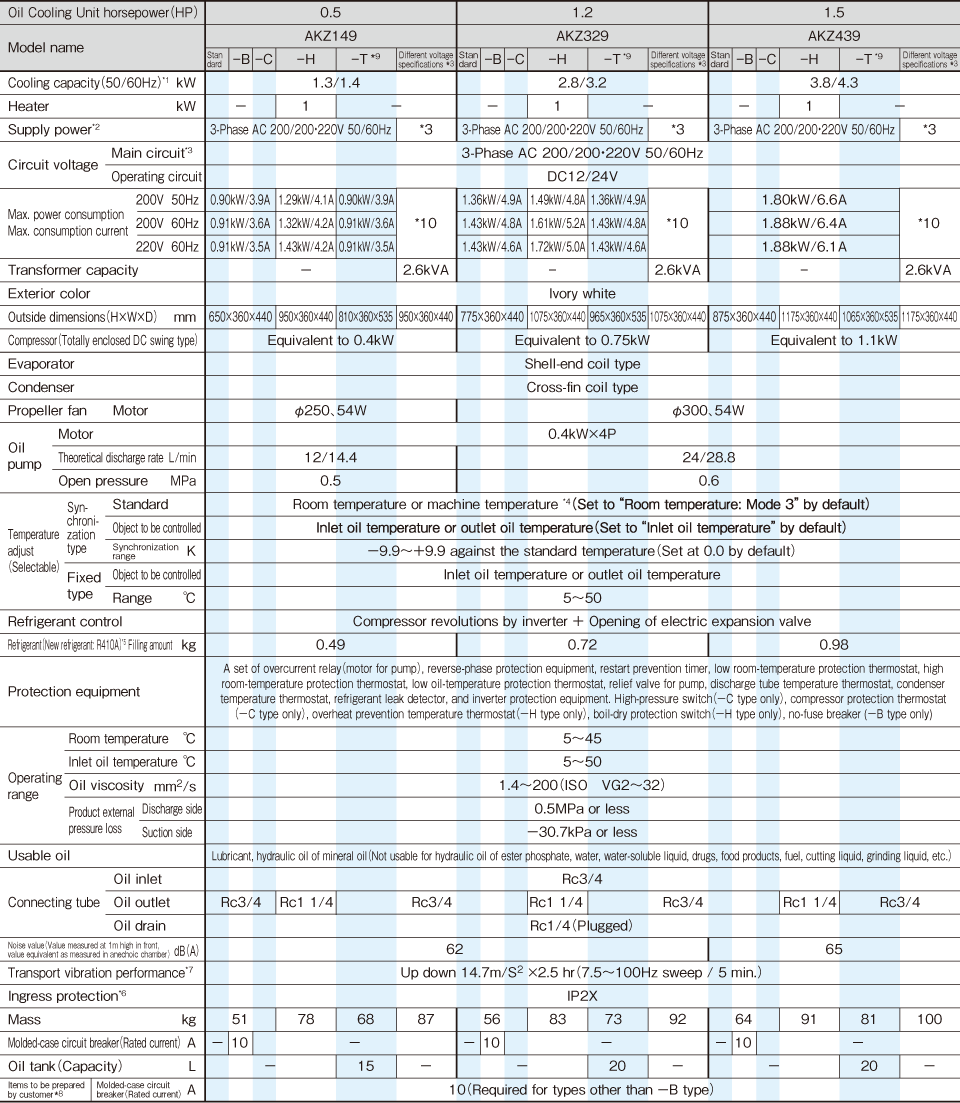

AKZ149, AKZ329, AKZ439

*1.: The cooling capacity represents the value at the standard poin（t inlet oil temperature: 35℃, room temperature: 35℃, oil for use: ISO VG32）. The tolerance of the product is approx.±5%.
*2.: Be sure to use a commercial power supply for the power source. The use of an inverter power supply may cause burn damage to the unit. The voltage fluctuation range should be within ±10%. If the voltage fluctuation range is more than ±10%, please consult us.
*3.: There are three types of different voltage specifications depending on the power source: －046, －047 and －048 units. －047 and －048 units deal with the different voltage by featuring a transformer. The main circuit voltage is the transformer’s secondary side voltage of 200 VAC, 50/60 Hz. (－046 units have no transformer and therefore have the same external dimensions and mass as standard units. Their main circuit voltage is 220/230 VAC, 50/60 Hz.)
*4.: The machine temperature synchronous thermistor optionally available is required for this function（. Refer to Page 19 for details.）
*5.: The MSDS（Material Safety Data Sheet） of refrigerant R410A is attached to ーC type.
*6.: Electric component box ingress protection: IP54 or equivalent (However, use piping conduits etc. rated at least IP54 at wiring ports.)
*7.: The specifications for withstanding vibration during transport are those of a standard unit.
*8.: The molded-case circuit breaker is not supplied with this product. Please prepare it by yourself.
*9.: The yellow line on the tank oil level gauge shows the highest oil level and the red line the lowest oil level.
*10.: The maximum power consumption/maximum current consumption of different voltage specifications are shown in the tables below.

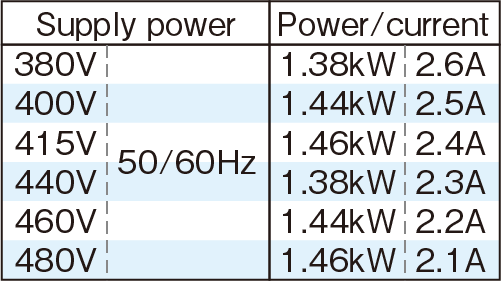

■AKZ149

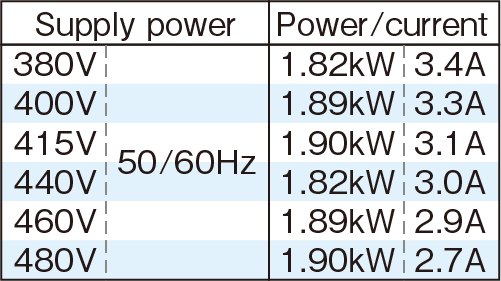

■AKZ329

■AKZ439

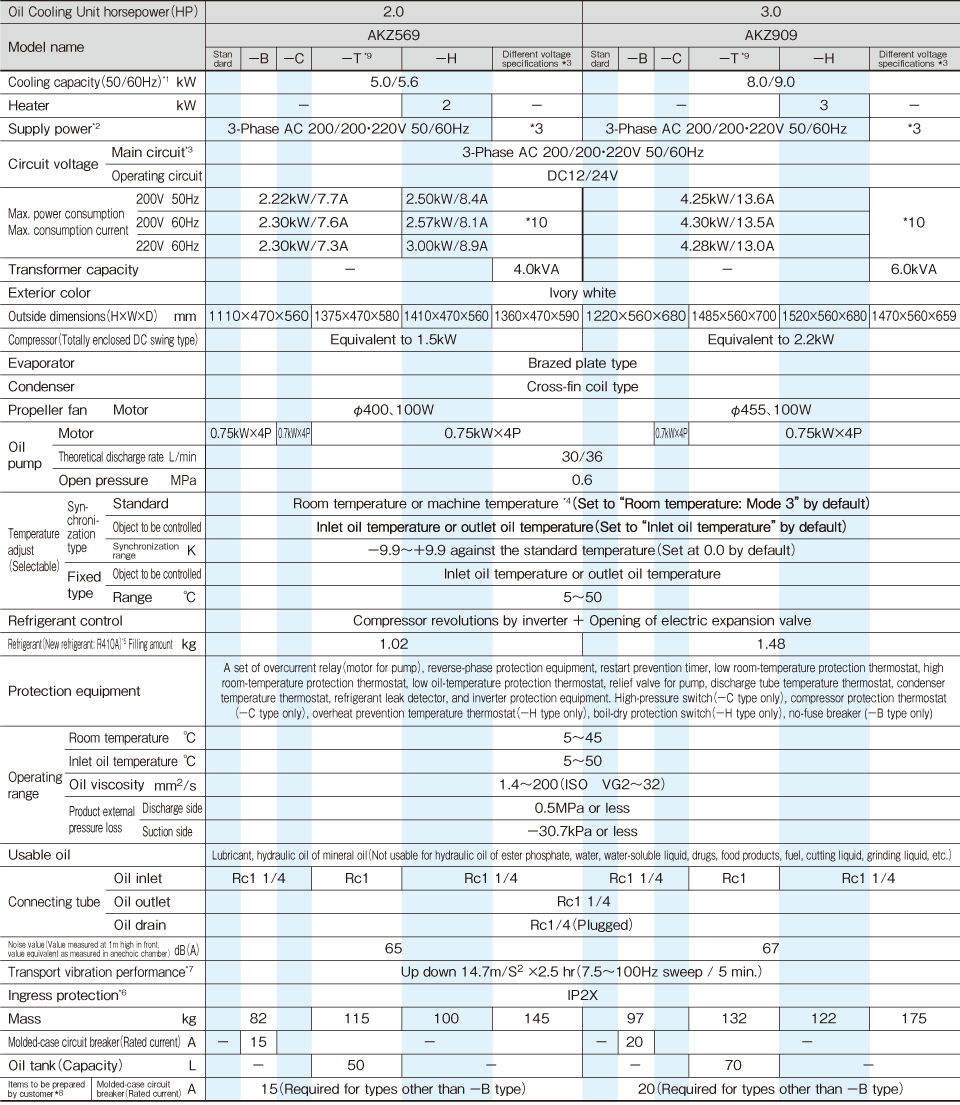

AKZ569, AKZ909

*1.: The cooling capacity represents the value at the standard poin（t inlet oil temperature: 35℃, room temperature: 35℃, oil for use: ISO VG32）. The tolerance of the product is approx.±5%.
*2.: Be sure to use a commercial power supply for the power source. The use of an inverter power supply may cause burn damage to the unit. The voltage fluctuation range should be within ±10%. If the voltage fluctuation range is more than ±10%, please consult us.
*3.: There are three types of different voltage specifications depending on the power source: －046, －047 and －048 units. －047 and －048 units deal with the different voltage by featuring a transformer. The main circuit voltage is the transformer’s secondary side voltage of 200 VAC, 50/60 Hz. (－046 units have no transformer and therefore have the same external dimensions and mass as standard units. Their main circuit voltage is 220/230 VAC, 50/60 Hz.)
*4.: The machine temperature synchronous thermistor optionally available is required for this function（. Refer to Page 19 for details.）
*5.: The MSDS（Material Safety Data Sheet） of refrigerant R410A is attached to ーC type.
*6.: Electric component box ingress protection: IP54 or equivalent (However, use piping conduits etc. rated at least IP54 at wiring ports.)
*7.: The specifications for withstanding vibration during transport are those of a standard unit.
*8.: The molded-case circuit breaker is not supplied with this product. Please prepare it by yourself.
*9.: The yellow line on the tank oil level gauge shows the highest oil level and the red line the lowest oil level.
*10.: The maximum power consumption/maximum current consumption of different voltage specifications are shown in the tables below.

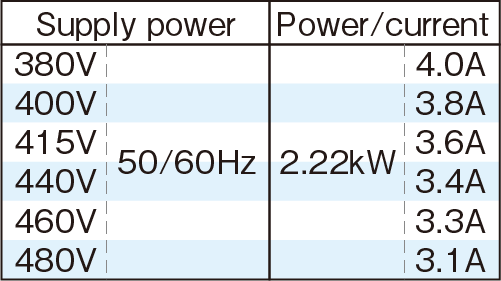

■AKZ569

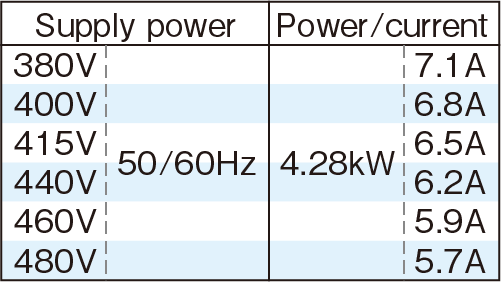

■AKZ909

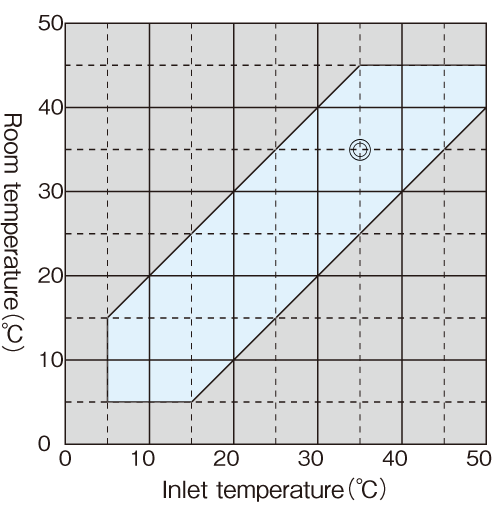

Range of use

※1: The mark ◎ shows the standard point.
※2: Be sure to use the unit at the range of use specified in　; （The use outside the use range may cause unit failure.）
